The device at a glance
MH01 device is a Holmium (2.1 μm) surgical laser offering a wide selection of settings for the treatment of stones and soft tissue surgery, together with high versatility, cost-effectiveness and ease of use.
Its radiation is strongly absorbed by water, resulting in effective hemostasis and limited depth of penetration (0.3-0.4mm).
Apart from urology treatments, this device can be used in the resection and ablation of different soft tissues.
The compact tower design simplifies its transportation and storage, easing its use in different hospital wards.
Superior Settings
Thanks to its settings range, MH01 device stands out in the segment of low power – holmium lasers.
This laser provides the user with high power output (up to 35W), energy (up to 5J) and frequency (up to 30Hz), together with an extremely long pulse width (up to 1500µs).
These technical features offer multiple combinations of emission and superior versatility in stone treatment and soft tissue surgery.

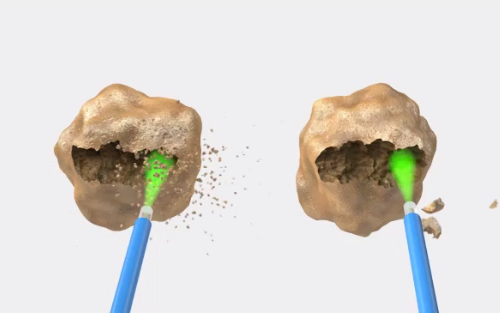

Dusting Effect
Stone retropulsion and migration often prolong lithotripsy treatment, in particular with high pulse energy.
Litho device is equipped with the Dusting Effect mode, taking advantage of the extremely long pulse width to perform a smoother ablation of stone, limiting retropulsion without affecting fragmentation efficiency. The obtained fine dust obviates the need for retrievalof fragments by basket.
Wide range of Fibers
A great versatility in applications requires a wide range of delivery probes. For this reason, MH01 laser is compatible with different fiber diameters (200-1000µm) and types.
Apart from standard fibers, our portfolio includes ball tip fibers (for easier insertion into already bent scope), performance probes (to deliver even higher output
Specifications
Technical Specifications
WaveLenght Ho: YAG 2100 nm
Pulse energy: 0,2 – 4 J
Pulse frequency: 3 – 25 Hz
Pulse duration: 150-850 μs
Pulse width: 100-1500 micro sec (lamp)
Pulse lengh regulation: Automatically
Average power: up to 30W
Wavelength: 2100nm+/- 20nm
Electrical :
100-120 VAC: 50/60 HZ 16 A
200-240 VAC: 50/60 HZ 10 A
Dimension: 938 x 332 x 967 H x W x D (mm)
Weight: 60 kg
