PICO SMART is based on an advanced acquisition module called SAU-URO, with powerful capabilities. It can be based on one trolley (all-in-one-system) or upon units connected via Bluetooth

Pico Smart is compatible with perfused catheters, air-charged and solid-state catheters like those manufactured by Unisensor, Gaeltec and others.

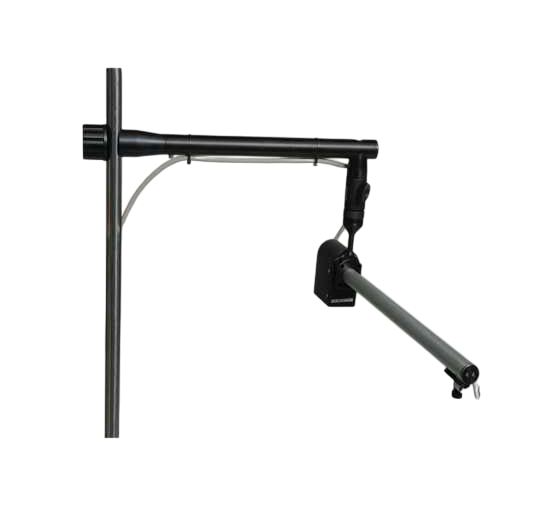

The mechanical catheter puller is controlled via software or infrared remote control.

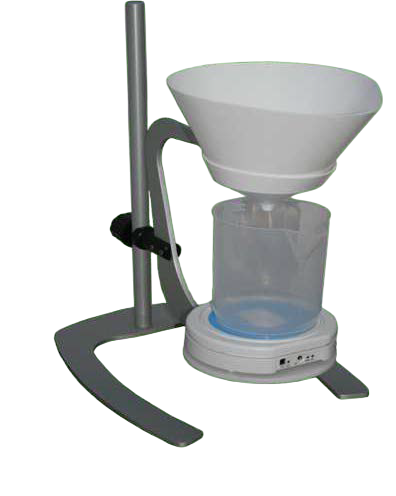

The uroflowmeter is connected to acquisition board either by means of a cable 8 m long or by a wireless module so that it can be put in a private place to make the patient more comfortable.

Adjustable and easy to clean.

In all-in-one configuration, the trolley has 4 pivot wheels (all with brakes) and 2 shelves. It is provided with an IV shaft to hold the acquisition unit, the catheter withdrawer and the pressure transducer module

The Acquisition unit has up to 16 channels: Pressure, Electromyography, Flow, Volume and Leak Point Detector; It includes a peristaltic pump with 4 rollers. The Microprocessor has high sampling rate capability

PICO3000 is a program that carries out and analyses all the urodynamic studies in few

stages. It includes the following features:

• Database (MS Access and SQL compatible),

• Automatic Medical Reports based on pre-set and customized templates,

• Studies results, graphs and raw data available on MS Office application (Excel, Power Point, Word).

Advanced Analysis of Pressure Flow Studies, Cystometry and Flowmetry. It includes the most important nomograms such as ICS, Schafer's nomograms, Abrams and Griffith's Gohniem, Liverpool nomograms, nomograms, Blaivas and Groutz.

Thanks to the automatic save & resume feature, the study interrupted for any reason, also for a blackout of the mains, can be easily resumed.

Electromyography with checking of the skin Impedance to ensure good signal recording.

• Advanced statistics function.

• Export the data to MS Excel.

• Automatic artefact rejection.

• Thanks to the capability to revi,ew the history of the study, the operator can

recall the acquired traces while performing the study.

• PICO3000 is designed to be part of a network. It is compatible with DICOM, HL7

and other standards.

PICO SMART can be expanded with the following options:

• Video-urodynamics to combine x-ray or ultrasound images and short movies with the urodynamic tracings,

• Biofeedback for the pelvic floor rehabilitation,

• Oesophageal and Anorectal motility: to assess the gastrointestinal motility,

• Whitaker test to study the functioning of the upper urinary tract,

• Cavernosometry to study the erectile disorders (not available in USA),

• Module of Neurophysiology; It studies Pudenda! Motor Nerve Latency, Sacral Reties, simple EMG and quantitative EMG

We offer a wide range of catheters and lines developed in close cooperation with the urodynamists to combine the maximum comfort of the patient with the best possible measurements. The catheters are made in high quality materials like PEBAX and PVC, widely tested to meet the needs of the Urodunamic studies. Require the catalogue "Urodynamic catheters and lines" or visit our web site www.menfis.it
