Combined Uroflowmetry and Electromyography:

The utmost from the simplest urodynamic test

PICO FLOW2 is a double-channel instrument for Uroflowmetry and Electromyography (optional)

examinations of the Pelvic Floor.

Thanks to its advanced technical features PICO FLOW2 is especially designed for urodynamic

examinations in paediatric and gynecology departments and whenever one chooses to perform a

non-invasive urodynamic examination

TECHNICAL DATA: PICO FLOW2 UNIT

• Graphic display, touch screen, 5.7” monochromatic,

resolution 320x240 pixel;

• Memory card, size 512 MB;

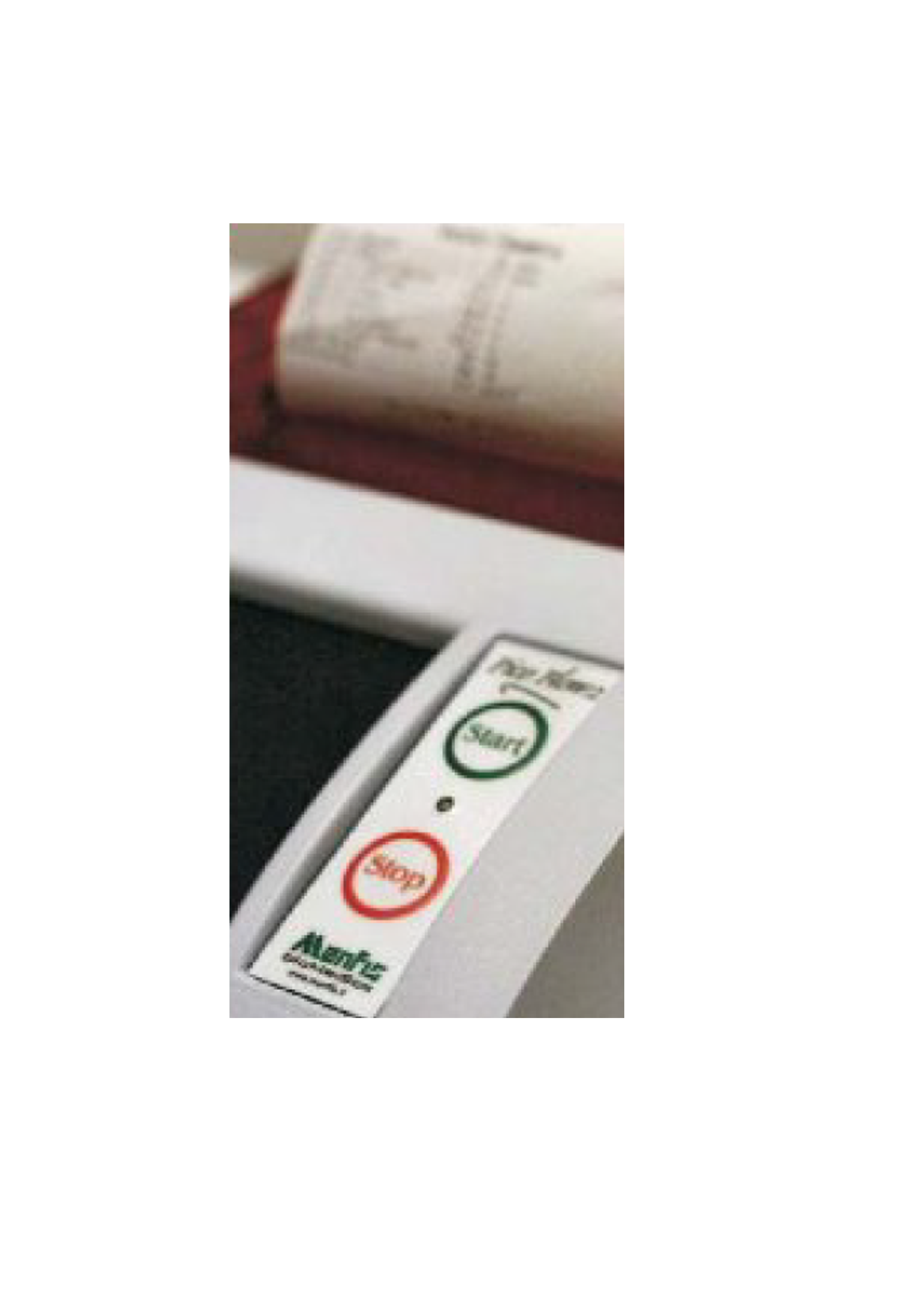

• Start and Stop push-buttons for manual mode.

• Serial port RS232 for PC link through optical cable

(optional);

• Built-in thermal printer. Roll paper width: 114 mm,

• External power supply: 230V 50 I Iz / 120V 60 flz. Power consuption 30 VA;

• Dimensions: 116x325x237 mm;

• Weight 2.0 Kg.

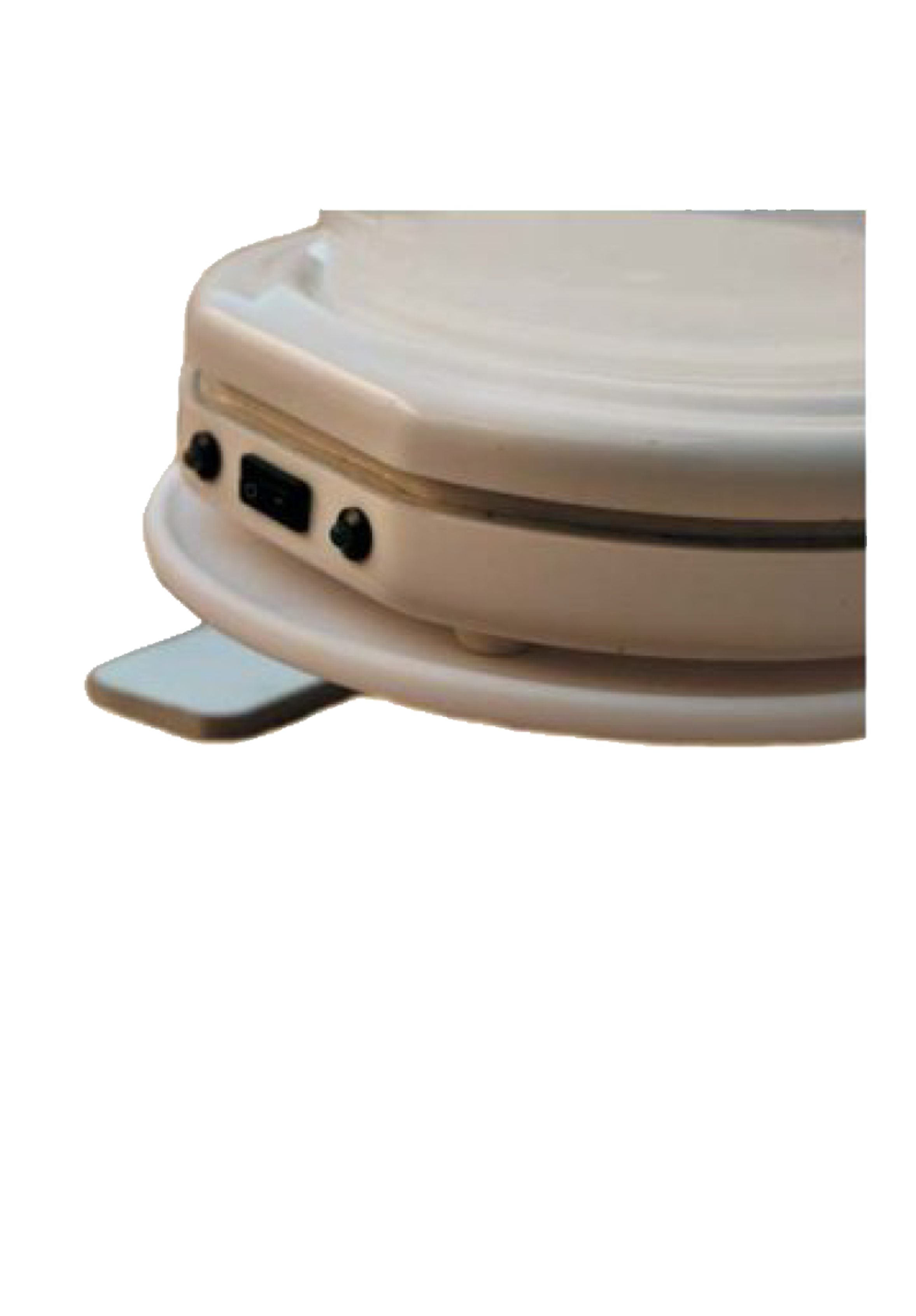

FLOWMETER

• Wireless (ZigBee) or Cable

• Load cell flow transducer at high resolution and long term accuracy.

• Flow Range 0 to 100 ml/s;

• Accuracy 1 %;

• End scale: automatic or manual;

• Sampling rate: 10 Hz;

• A/D converter: 12 bit:

• Volume Range: 2000 ml.

EMGCHANNEL

• Range: 0 to 2 mV;

• End scale: automatic or manual;

• Sampling rate: 100 Hz;

• AID converter: 12 bit:

• It works with surface electrodes

FEATURES

Large graphic touch-screen display for patient's data emry and

set-up of the test. The traces arc shown on-line upon the screen with the

possibility to change their scale.

Two channels: 1 uroflow, 1 (optional) EMG. Start/End examination:

automatic or manual. Built-in thermal printer.

PICO FLOW 2 is suitable both for stationary and domiciliary uroflowmctry.

The tests are stored on an extractable 512 l\lB memory card with the

capability of 100 examinations. In domiciliary mode it can store up to one

week of uroflowmetries.Post-analysis of the stored examinations both in

automatic and manual way through the insertion of dedicated markers.

Optional software package for Windows based Personal Computer.

STANDARD CONFIGURATION

Pico Flow2 unit;

Flowmeter with demountable pole, 2 litres

beaker, funnel and cable, 8 m long.

OPTIONAL CONFIGURATION

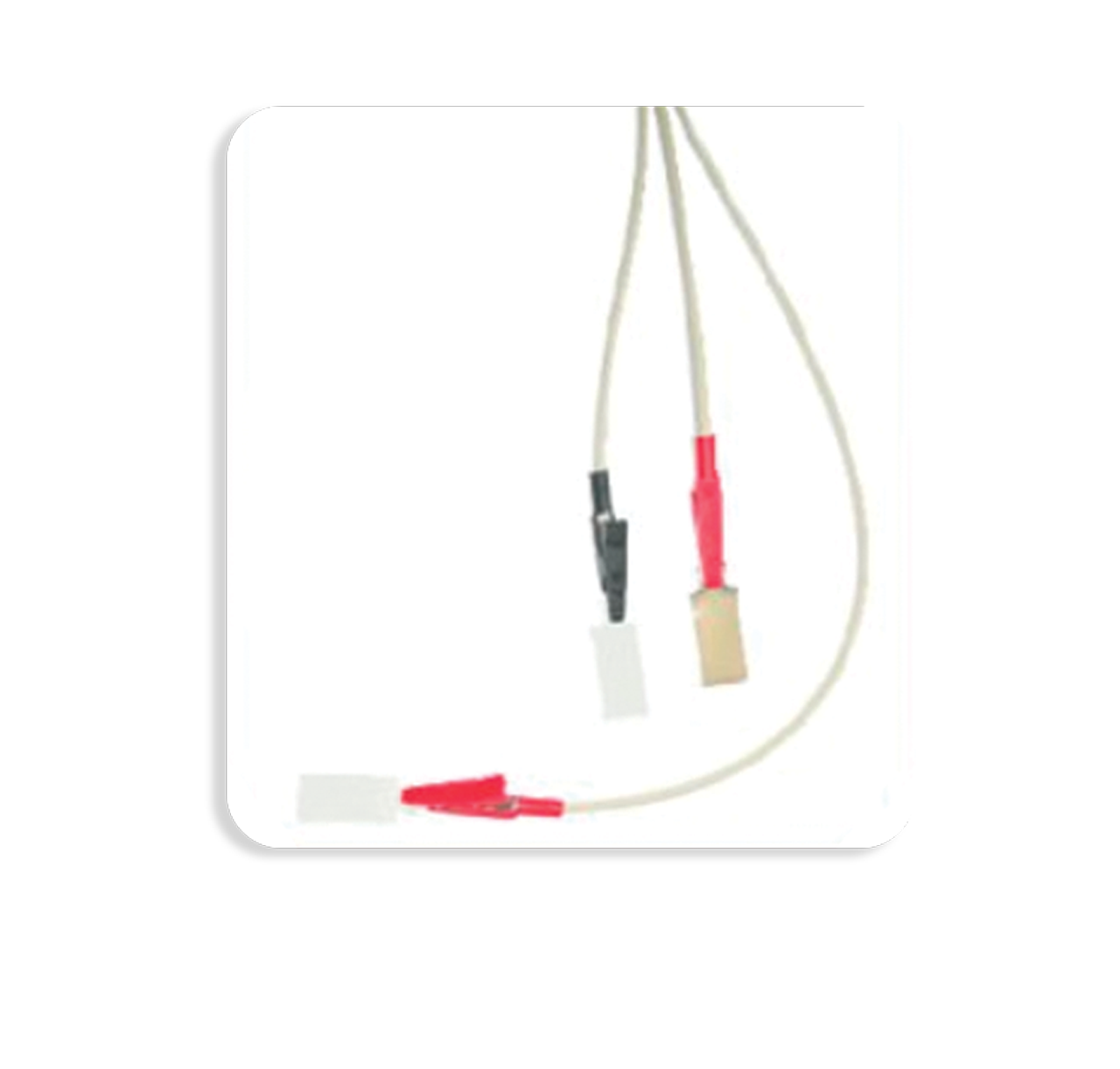

EMG channel with surface electrodes, cable 8

m long. Disposable surface electrodes (200

items per box), code F3001NECG

Commode chair

FLOWSOFT2 software packages for Windows based Personal Computer. It allows downloading and

analysing the tests stored into the memory card.
